Sirui Broadcast Video Head Series
Broadcast Video Heads
The heart of a video support system is the head. From the construction of the SIRUI BCH video heads - forged aircraft grade aluminum alloy for maximum strength and long life - to the flexibility of its controls - up to 7 levels of drag for panning and tilting (plus 0 position) and up to 13 levels of counterbalance adjustment (position the camera at any angle without locking the head in place) - Sirui has designed and built a precision product that satisfies a videographer's needs. Smooth 360° panning, 90° tilting, reliable results. That's what is demanded and provided.

And the smaller features that add up to big advantages. Our calibrated Quick Release platform makes repeatable results easy. Our dual safety locking system lets you make adjustments safely and confidently. And the telescoping arms give you extra reach when you need it.

The SIRUI BCH-20 and BCH-30 have storage sockets for extra screws that can also be used to attach lights, microphones or other accessories. All Sirui videoheads have two bubble levels - the conventional base bubble level for aligning the head on the tripod (it's illuminated) and the top bubble level that helps you horizontally align the camera.

The SIRUI BCH-10 and 20 come with an attached 75mm ball and the BCH-30 has a 100mm ball.
Features
1. Three levels of friction control for panning and tilting, plus 0 position for frictionless     operation. Seven levels for the BCH-30.
2. Three levels of counter-balance spring tension adjustment. Seven levels for the
     BCH-20. Thirteen levels for the BCH-30.
3. Two bubble levels - illuminated base bubble level and "SIRUI exclusive" top bubble level.
4. Dual Safety Lock Quick Release Platform prevents the camera from sliding off of the     head while aligning the camera for  proper balance.
5. Calibrated Quick Release Platform - easily reposition your equipment thanks to the     etched scale on the platform.
6. Telescoping handle. The BCH-20 and BCH-30 each have two telescoping handles.
7. BCH-10 and BCH-20 each have an attached 75mm ball. The BCH-30 has a 100mm ball.
8. The BCH-20 and BCH-30 each come with an extra ¼" and 3/8" screw that is stored in     the attachment site.
9. Separate Pan and Tilt Locking Knobs.
10. Includes Quick Release Plate.

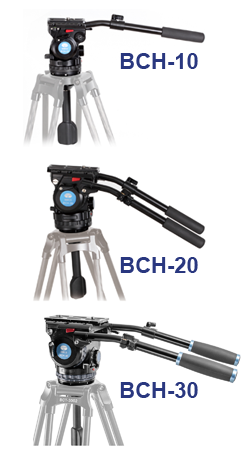

BCH-10
BCH-20
BCH-30
Broadcast Video Heads
      Counterbalanced   Wgt Load
  Sirui   Weight Dimensions lb lb
Item# Model # Materials in (mm) in (mm) (kg) (kg) MSRP
BSRBCH10 BCH-10 Carbon Fiber

6.6 ~ 13.2 (3-6)

15.2 (385) X 5.9 (149) X 12 (312)

13.2

(6)

4.0
(1.8)
TBA
BSRBCH20 BCH-20 Carbon Fiber 6.6 ~22 (3-10) 15.7 (400) X 7.4 (188) X 13 (338) 22
(10)
7.1
(3.1)
TBA
BSRBCH30 BCH-30 Carbon Fiber 6.6 ~ 39.7 (3-18) 17.9 (455) X 8.9 (227) X 14 (356) 39.7
(18)
10.1
(4.6)
TBA
